6570026 OBO Car charger ION Wallbox Key Protect 22 kW

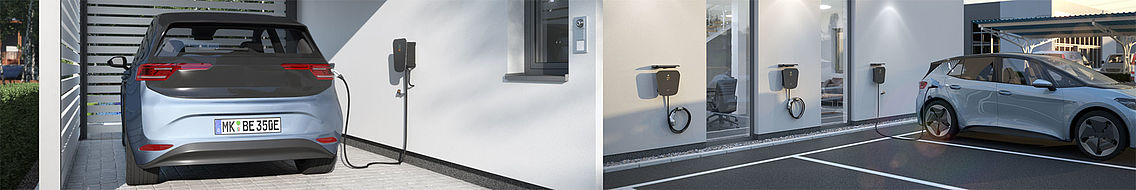

The prewired, ready-for-connection OBO Ion charging station for relaxed, PV-optimised charging of electric vehicles – at home or even for a whole vehicle fleet on a company's site. The impact-resistant housing according to IK08 makes it extremely robust and, with a protection rating of IP66, it can be used in both indoor and protected outdoor areas.

• Charging according to Mode 3 in accordance with EN IEC 61851-1
• Single, dual and triple charging
• Charging power can be adjusted dynamically in 1 A steps: 1.4 to 22 kW (factory setting 11 kW)
• With a manual switch of the charging power to 11 kW, the charging station can qualify for the KfW subsidy in Germany, for example.
• Potential-free enabling contact, e.g. for PV systems: ripple control receiver, timer, RFID module and smart home technology
• Modbus RTU protocol via RS-485 interface for bidirectional communication
• Permanently installed 5 m charging cable with type 2 connector for all current vehicle types, including cable holder
• With Green Zero Switch: 0.0 kW standby consumption
• Practical features: Integrated temperature monitoring, DC error current monitoring, status information via LED display
